HMC349MS8G Datasheet, SWITCH, Hittite Microwave Corporation

HMC349MS8G Features

  • Switch High Isolation: 70 dB @ 1 GHz 57 dB @ 2 GHz Single Positive Control: 0/+5V +52 dBm Input IP3 Non-Reflective Design All Off State HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH, DC - 4.0 GHz

PDF File Details

Part number:

HMC349MS8G

Manufacturer:

Hittite Microwave Corporation

File Size:

210.51kb

Download:

📄 Datasheet

Description:

High isolation spdt non-reflective switch. The HMC349MS8G is a high isolation nonreflective DC to 4 GHz GaAs MESFET SPDT switch in a low cost 8 lead MSOP8G surface mount package

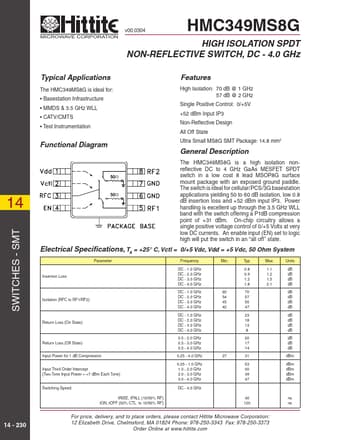

Datasheet Preview: HMC349MS8G 📥 Download PDF (210.51kb)
Page 2 of HMC349MS8G Page 3 of HMC349MS8G

HMC349MS8G Application

  • Applications The HMC349MS8G is ideal for:
  • Basestation Infrastructure
  • MMDS & 3.5 GHz WLL
  • CATV/CMTS
  • Test Instr
