HMC340LP5 Datasheet - Hittite Microwave Corporation

GaAs MMIC SMT DOUBLE-BALANCED DUAL MIXER

HMC340LP5 Features

* Conversion Loss: 8.0 dB LO/RF Isolation: 45 dB LO/IF Isolation: 33 dB Input IP3: +20 dBm Conversion Gain Balance: 0.1 dB GaAs MMIC SMT DOUBLE-BALANCED DUAL MIXER, 1.7 - 4.5 GHz Typical Applications The HMC340LP5 Dual Mixer is ideal for:

* Wireless Infrastructure

* Wireless Local Loo

HMC340LP5 General Description

The HMC340LP5 is a double-balanced dual mixer covering 1.7 - 4.5 GHz RF/LO range. This passive MMIC mixer is constructed of GaAs Schottky diodes and on-chip baluns. The device can be used as an upconverter, downconverter, biphase (de)modulator, or phase comparator. The mixer symmetry of the HMC340LP.

HMC340LP5 Datasheet (274.36 KB)

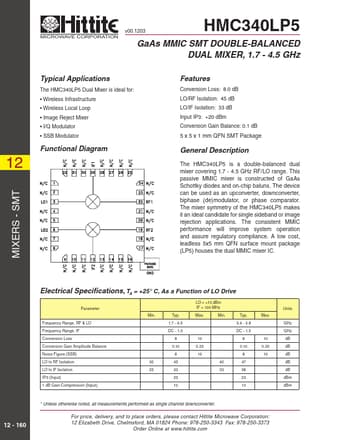

HMC340LP5 Datasheet Preview — Preview of HMC340LP5 PDF

Datasheet Details

Part number:

HMC340LP5

Manufacturer:

Hittite Microwave Corporation

File Size:

274.36 KB

Description:

Gaas mmic smt double-balanced dual mixer.
