HMC344LP3E Datasheet, Switch, Analog Devices

HMC344LP3E Features

• Switch Broadband Performance: DC - 8 GHz High Isolation: 40 dB@ 6 GHz Low Insertion Loss: 1.8 dB@ 6 GHz Integrated 2:4 TTL Decoder 16 Lead 3x3mm QFN Package: 9 mm² General Description The HMC3

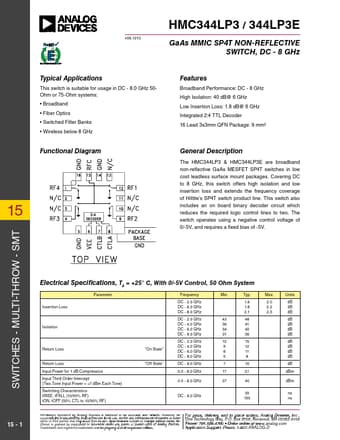

PDF File Details

Part number:

HMC344LP3E

Manufacturer:

Analog Devices ↗

File Size:

352.04kb

Download:

📄 Datasheet

Description:

Gaas mmic sp4t non-reflective switch. The HMC344LP3 & HMC344LP3E are broadband non-reflective GaAs MESFET SP4T switches in low cost leadless surface mount packages. Coveri

HMC344LP3E Application

• Applications This switch is suitable for usage in DC - 8.0 GHz 50Ohm or 75-Ohm systems:
• Broadband
• Fiber Optics
• Switche
