HMC349LP4C

HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH

HMC349LP4C Features

* High Isolation: 67 dB @ 1 GHz 62 dB @ 2 GHz Single Positive Control: 0/+5V +52 dBm Input IP3 Non-Reflective Design All Off State HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH, DC - 4.0 GHz Typical Applications The HMC349LP4C is ideal for:

* Basestation Infrastructure

* MMDS & 3.5 GHz WLL

HMC349LP4C General Description

The HMC349LP4C is a high isolation nonreflective DC to 4 GHz GaAs MESFET SPDT switch in a low cost leadless surface mount package. The switch is ideal for cellular/PCS/3G basestation applications yielding 60 to 65 dB isolation, low 0.9 dB insertion loss and +52 dBm input IP3. Power handling is excell.

HMC349LP4C Datasheet (213.91 KB)

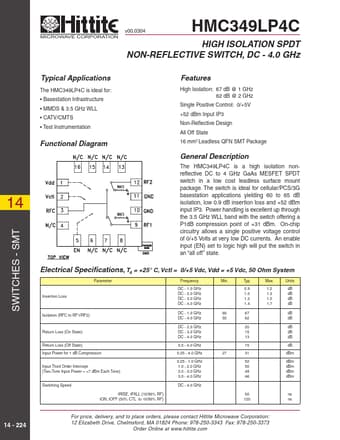

Preview of HMC349LP4C PDF

Datasheet Details

Part number:

HMC349LP4C

Manufacturer:

Hittite Microwave Corporation

File Size:

213.91 KB

Description:

High isolation spdt non-reflective switch.
