HMC349ALP4CE - High Isolation SPDT Non-Reflective Switch

Datasheet Summary

Description

The HMC349ALP4CE is a high isolation non-reflective DC to 4 GHz GaAs MESFET SPDT switch in a low cost leadless surface mount package.

The switch is ideal for cellular/PCS/3G basestation applications yielding 60 to 65 dB isolation, low 0.9 dB insertion loss and +53 dBm input IP3.

Features

High Isolation: 67 dB @ 1 GHz 62 dB @ 2 GHz Single Positive Control: 0/+5V +53 dBm Input IP3 Non-Reflective Design All Off State 16 mm2 Leadless QFN SMT Package General.

Datasheet Details

Part number	HMC349ALP4CE
Manufacturer	Analog Devices
File Size	277.70 KB
Description	High Isolation SPDT Non-Reflective Switch
Datasheet	HMC349ALP4CE Datasheet

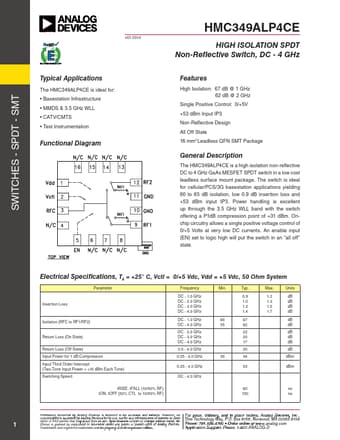

Additional preview pages of the HMC349ALP4CE datasheet.

📁 Similar Datasheet

HMC349LP4C - HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH (Hittite Microwave Corporation)

HMC349MS8G - HIGH ISOLATION SPDT NON-REFLECTIVE SWITCH (Hittite Microwave Corporation)

HMC340LP5 - GaAs MMIC SMT DOUBLE-BALANCED DUAL MIXER (Hittite Microwave Corporation)

HMC342 - GaAs MMIC LOW NOISE AMPLIFIER (Hittite Microwave Corporation)

HMC345ALP3E - GaAs MMIC SP4T NON-REFLECTIVE POSITIVE CONTROL SWITCH (Hittite Microwave)

HMC300LM1 - SMT MEDIUM POWER GaAs MMIC (Hittite Microwave Corporation)

HMC304MS8 - GaAs MMIC (Hittite Microwave Corporation)

HMC305LP4 - 0.5 dB LSB GaAs MMIC (Hittite Microwave Corporation)

HMC305LP4E - 0.5 dB LSB GaAs MMIC (Hittite Microwave Corporation)

HMC309MS8 - 2.4 GHz FRONT-END LNA/SWITCH (Hittite Microwave Corporation)

Full PDF Text Transcription

Click to expand full text

Switches - SPDT - SMT v01.0314 Typical Applications The HMC349ALP4CE is ideal for: • Basestation Infrastructure • MMDS & 3.5 GHz WLL • CATV/CMTS • Test Instrumentation Functional Diagram HMC349ALP4CE High Isolation SPDT Non-Reflective Switch, DC - 4 GHz Features High Isolation: 67 dB @ 1 GHz 62 dB @ 2 GHz Single Positive Control: 0/+5V +53 dBm Input IP3 Non-Reflective Design All Off State 16 mm2 Leadless QFN SMT Package General Description The HMC349ALP4CE is a high isolation non-reflective DC to 4 GHz GaAs MESFET SPDT switch in a low cost leadless surface mount package. The switch is ideal for cellular/PCS/3G basestation applications yielding 60 to 65 dB isolation, low 0.9 dB insertion loss and +53 dBm input IP3. Power handling is excellent up through the 3.
