HMC342

GaAs MMIC LOW NOISE AMPLIFIER

Hittite Microwave Corporation

HMC342 Features

* Noise Figure : 3.5 dB Gain: 20 dB Single Supply : +3V @ 36 mA Small Size: 1.06 mm x 2.02 mm 1 AMPLIFIERS - CHIP Typical Applications The HMC342 is ideal for:

* Microwave Point-to-Point Radios

* Millimeterwave Point-to-Point Radios

* VSAT & SATCOM Functional Diagram Genera

HMC342 General Description

The HMC342 chip is a GaAs MMIC Low Noise Ampliﬁer (LNA) which covers the frequency range of 13 to 25 GHz. The chip can easily be integrated into Multi-Chip Modules (MCMs) due to its small (2.14 mm2) size. The chip utilizes a GaAs PHEMT process offering 20 dB gain from a single bias supply of + 3.0V .

HMC342 Datasheet (187.97 KB)

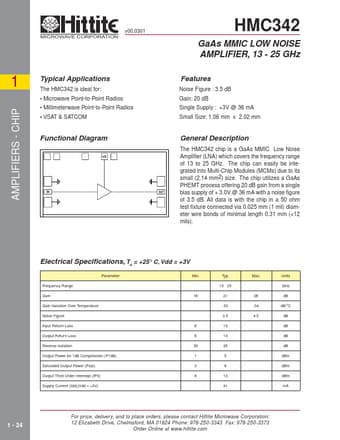

HMC342 Datasheet Preview — Preview of HMC342 PDF

Datasheet Details

Part number:

HMC342

Manufacturer:

Hittite Microwave Corporation

File Size:

187.97 KB

Description:

Gaas mmic low noise amplifier.
