HMC344LH5 Datasheet, Switch, Analog Devices

HMC344LH5 Features

  • Switch Broadband Performance: DC - 12 GHz High Isolation: 42 dB@ 6 GHz Low Insertion Loss: 1.8 dB@ 6 GHz Integrated 2:4 TTL Decoder Hermetic SMT Package, 25 mm2 Screening to MIL-PRF-38535 (Cla

PDF File Details

Part number:

HMC344LH5

Manufacturer:

Analog Devices ↗

File Size:

571.10kb

Download:

📄 Datasheet

Description:

Gaas mmic sp4t non-reflective switch. The HMC344LH5 is a broadband non-reflective GaAs MESFET SP4T switch in a hermetic SMT leadless package. Covering DC to 12 GHz, this s

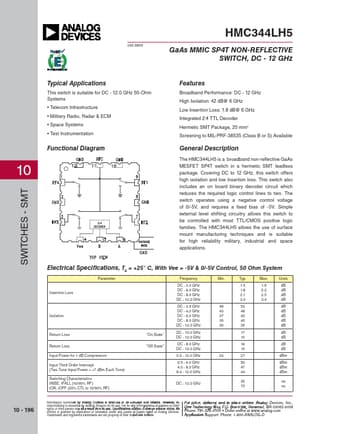

Datasheet Preview: HMC344LH5 📥 Download PDF (571.10kb)
Page 2 of HMC344LH5 Page 3 of HMC344LH5

HMC344LH5 Application

  • Applications This switch is suitable for DC - 12.0 GHz 50-Ohm Systems
  • Telecom Infrastructure
  • Military Radio, Radar & ECM
