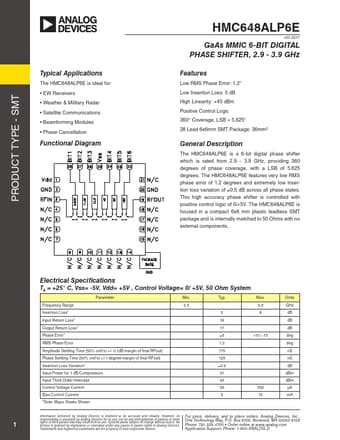

* Low RMS Phase Error: 1.2° Low Insertion Loss: 5 dB High Linearity: +45 dBm Positive Control Logic 360° Coverage, LSB = 5.625° 28 Lead 6x6mm SMT Package: 36mm² General Description The HMC648ALP6E is a 6-bit digital phase shifter which is rated from 2.9 - 3.9 GHz, providing 360 degrees of phase covera
HMC648ALP6E Datasheet (314.54 KB)
HMC648ALP6E
314.54 KB
Gaas mmic 6-bit digital phase shifter.
Product Type - SMT
Typical Applications
The HMC648ALP6E is ideal for:
* EW Receivers
* Weather & Military Radar
* Satellite C.
