HMC648LP6 Datasheet, Shifter, Analog Devices

HMC648LP6 Features

• Shifter Low RMS Phase Error: 1.2° Low Insertion Loss: 5 dB High Linearity: +45 dBm Positive Control Logic 360° Coverage, LSB = 5.625° 28 Lead 6x6mm SMT Package: 36mm2 General Description The HM

PDF File Details

Part number:

HMC648LP6

Manufacturer:

Analog Devices ↗

File Size:

369.87kb

Download:

📄 Datasheet

Description:

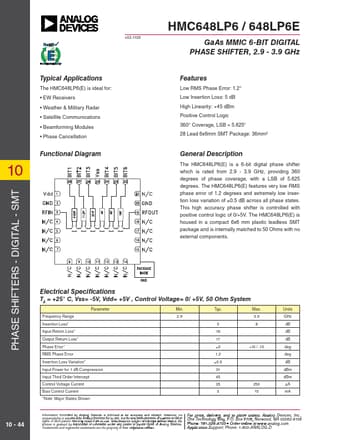

Gaas mmic 6-bit digital phase shifter. The HMC648LP6(E) is a 6-bit digital phase shifter which is rated from 2.9 - 3.9 GHz, providing 360 degrees of phase coverage, with a

HMC648LP6 Application

• Applications The HMC648LP6(E) is ideal for:
• EW Receivers
• Weather & Military Radar
• Satellite Communications
• B
