HMC798LC4 Datasheet - Analog Devices

GaAs MMIC SUB-HARMONIC SMT MIXER

HMC798LC4 General Description

The HMC798LC4 is a 24 - 34 GHz Sub-harmonically Pumped (x2) MMIC Mixer with an integrated LO amplifier in a leadless RoHS compliant SMT package. The 2LO to RF isolation is excellent at 30 dB, eliminating the need for additional filtering. The LO amplifier is a single bias +5V design with a nominal +.

HMC798LC4 Datasheet (706.23 KB)

HMC798LC4 Datasheet Preview — Preview of HMC798LC4 PDF

Datasheet Details

Part number:

HMC798LC4

Manufacturer:

Analog Devices ↗

File Size:

706.23 KB

Description:

Gaas mmic sub-harmonic smt mixer.

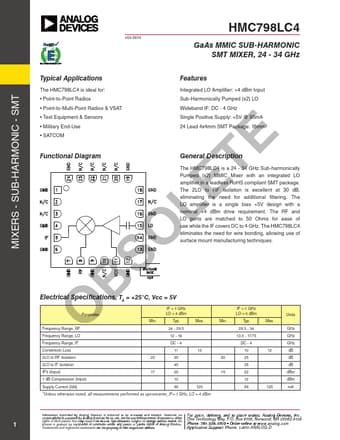

MIXERS - SUB-HARMONIC - SMT OBSOLETE v04.0614 Typical Applications The HMC798LC4 is ideal for: Point-to-Point Radios Point-to-Mul.
