HMC7992 Datasheet, Switch, Analog Devices

HMC7992 Features

  • Switch Nonreflective, 50 Ω design High isolation: 45 dB typical at 2 GHz Low insertion loss: 0.6 dB at 2 GHz High power handling 33 dBm through path 27 dBm terminated path High linearity 1 dB

PDF File Details

Part number:

HMC7992

Manufacturer:

Analog Devices ↗

File Size:

261.48kb

Download:

📄 Datasheet

Description:

Nonreflective / silicon sp4t switch. The HMC7992 is a general-purpose, nonreflective, 0.1 GHz to 6.0 GHz, silicon, single-pole, four-throw (SP4T) switch in a leadless, su

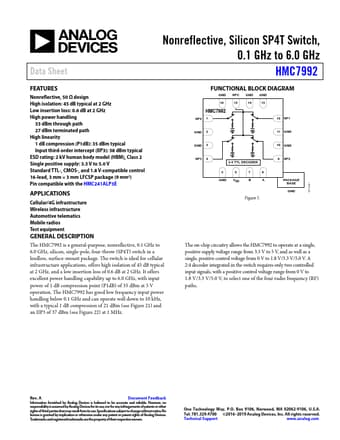

Datasheet Preview: HMC7992 📥 Download PDF (261.48kb)
Page 2 of HMC7992 Page 3 of HMC7992

HMC7992 Application

  • Applications Cellular/4G infrastructure Wireless infrastructure Automotive telematics Mobile radios Test equipment GENERAL DESCRIPTION The HMC7992 i
