BL8070 - 6V High Speed INVERTER

BL8070 Description

BL8070 .
BL8070 is CMOS single inverter gate.

BL8070 Features

* Space saving 5-lead surface mount SC70 Package and 1x1mm DFN package
* Ultra High Speed; TPD 8.5 ns Typ into 50 pF at 5V VCC
* High Output Drive; ±16 mA at 5V VCC
* Broad VCC Operating Range; 1.65V to 6.0V
* Low Power Consumption, 1μA Max ICC
* Schmitt Trigger Action at inp

BL8070 Applications

* Cell phone and other portable device
* 3G module ORDERING INFORMATION / PIN CONFIGURATION / MARKING Ordering Part No. Package Pin Out Marking BL8070CA5TR SC70-5 OCYW BL8070CKDTR BL8070CKDTR DFN1x1-5L DFN1x1-4L 1Y 2 Gnd 3A 5. Vcc 4. NC 1 Y 4 Vcc 2 Gnd 3A OC YW OC YW YW：Date

📥 Download Datasheet

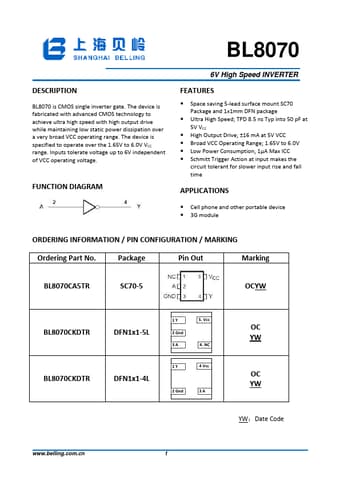

Preview of BL8070 PDF
