BL8072 Datasheet - BELLING

2A Low Consumption Linear Regulator

BL8072 Features

* Low Power Consumption:3.0uA (Typ.)

* Maximum output current : 2A

* Maximum input voltage: 18V

* Line regulation: 0.2% (Typical)

* Output Voltage Range:1.2V~5.0V (customized on command in 0.1V steps)

* Highly Accurate:±2%(±1% customized)

* Typica

BL8072 General Description

BL8072 is a series of low power consumption, low dropout voltage regulator with a typical dropout voltage of 1.0V at 2A load current. BL8072 can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customized on command. Other than every voltage version can be used as an adjusta.

BL8072 Datasheet (964.75 KB)

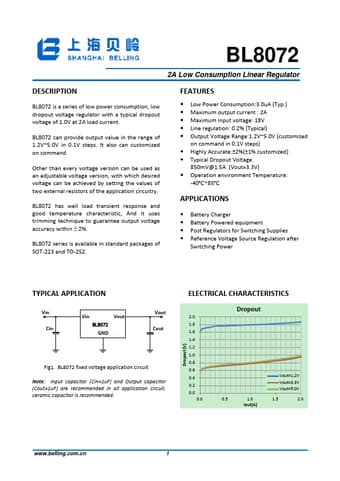

BL8072 Datasheet Preview — Preview of BL8072 PDF

Datasheet Details

Part number:

BL8072

Manufacturer:

BELLING

File Size:

964.75 KB

Description:

2a low consumption linear regulator.
