BL8071 - 1.5A Linear Regulator

BL8071 Description

GENERAL .
BL8071 series are a group of positive voltage output, high precise, and low power consumption voltage regulator.

BL8071 Features

* Low Quiescent Current: 100uA at 5V
* High PSRR: 70dB range to 1KHz
* Low Output Noise: 44uVRMS
* Low Dropout: 300mV at 1A load
* Maximum output current: 1.5A
* Highly Accurate: ±2%

BL8071 Applications

* Reference Voltage Source
* Battery Powered Equipment
* PC Peripherals
* Wireless Devices
* Instrumentation TYPICAL APPLICATION IN Cin BLLC810

📥 Download Datasheet

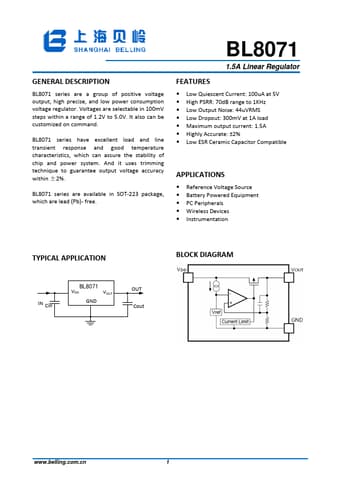

Preview of BL8071 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL8071
Manufacturer
BELLING
File Size
911.46 KB
Datasheet
BL8071-BELLING.pdf
Description
1.5A Linear Regulator
