BL8075 Datasheet - BELLING

BL8075 16V 500mA Low Consumption Linear Regulator

BL8075 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. It can provide 300mA output current when input / output voltage differential drops to 600mV (Vout= 3.3V), and it also provides foldback short-circuit protection, thermal protection and output c.

BL8075 Features

* Low Power Consumption: 10uA(Typ.)

* Maximum Output Current: 500mA

* Small Dropout Voltage 600mV@300mA (Vout=3.3V) 1.2V@5

BL8075-BELLING.pdf

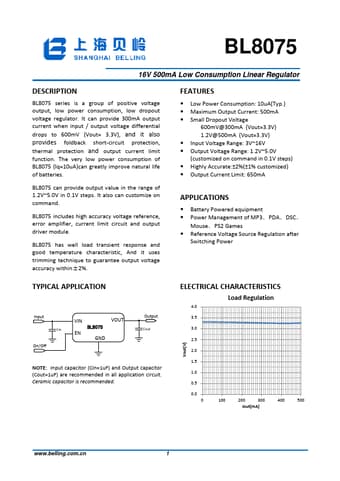

Preview of BL8075 PDF
BL8075 Datasheet Preview Page 2 BL8075 Datasheet Preview Page 3

Datasheet Details

Part number:

BL8075

Manufacturer:

BELLING

File Size:

845.38 KB

Description:

16v 500ma low consumption linear regulator.
