BL8078 - 40V 150mA Low Consumption Linear Regulator

BL8078 Description

BL8078 40V 150mA Low Consumption Linear Regulator .
BL8078 series is a group of positive voltage output, low power consumption, low dropout voltage regulator.

BL8078 Features

* Low Power Consumption: 2.5uA(Typ. )
* Maximum Output Current: 150mA
* Small Dropout Voltage 400mV@100mA (Vout=5V)
* Input Voltage Range: 3V~40V
* Output Voltage Range: 1.2V~5.0V (Vout>5V customized)
* Highly Accurate:±2%(±1% customized)
* Output Current Limit: 180mA APPL

BL8078 Applications

* Battery Powered equipment
* Power Management of MP3、PDA、DSC、 Mouse、PS2 Games
* Reference Voltage Source Regulation after Switching Power TYPICAL APPLICATION Input VIN LBLC81075855 VOUT Cin GND Output Cout NOTE: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are recomm

📥 Download Datasheet

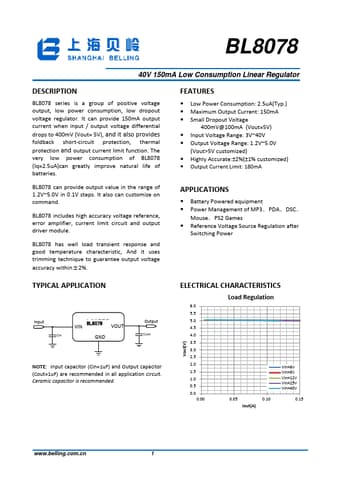

Preview of BL8078 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL8078
Manufacturer
BELLING
File Size
969.88 KB
Datasheet
BL8078-BELLING.pdf
Description
40V 150mA Low Consumption Linear Regulator
