BL8073 - 1A Ultra-Low Vin Low Dropout Voltage Linear Regulator

BL8073 Description

BL8073 1A Ultra-Low Vin Low Dropout Voltage Linear Regulator GENERAL .
BL8073 series are a group of positive voltage output, high precise, and low power consumption voltage regulator.

BL8073 Features

* Low Quiescent Current: 100uA at 5V
* High PSRR: 65dB range to 1KHz
* Low Output Noise: 44uVRMS
* Low Dropout: 200mV@Iout=0.8A, Vout=3.3V
* Maximum output current: 1A
* Highly Accurate: ±2%

BL8073 Applications

* Reference Voltage Source
* Battery Powered Equipment
* PC Peripherals
* Wireless Devices
* Instrumenta

📥 Download Datasheet

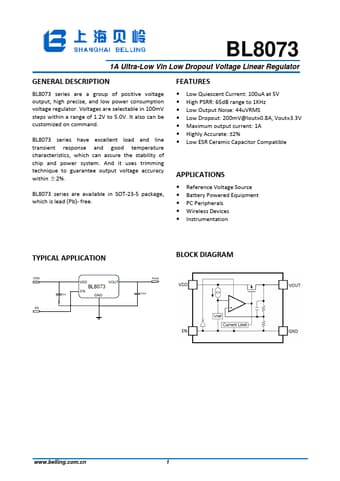

Preview of BL8073 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL8073
Manufacturer
BELLING
File Size
950.23 KB
Datasheet
BL8073-BELLING.pdf
Description
1A Ultra-Low Vin Low Dropout Voltage Linear Regulator
