BL8078Q - Low Consumption Linear Regulator

BL8078Q Description

BL8078Q Qualified for Automotive Application 40V 150mA peakļ¼Œ Low Consumption Linear Regulator .
BL8078Q is a group of positive voltage output, low power consumption, low dropout voltage regulator.

BL8078Q Features

* Low power consumption: 2.5uA(Typ. )
* Maximum output current: 150mA (must be used in the safe operation area)
* Small dropout voltage 240mV@50mA (VOUT=5.0V) 335mV@50mA (VOUT=3.3V)
* Wide input voltage range: 3V~40V
* Output voltage: 3.3V, 5.0V
* Highl

BL8078Q Applications

* Automotive
* Battery powered equipment
* Reference voltage source regulation after switching power
* Always-On Battery Applications
* Door Modules
* Remote Keyless-Entry Systems
* Immobilizers TYPICAL APPLICATION Input LC1555Q VIN VOUT

📥 Download Datasheet

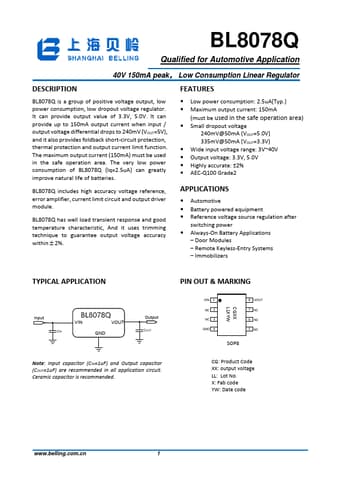

Preview of BL8078Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL8078Q
Manufacturer
BELLING
File Size
443.01 KB
Datasheet
BL8078Q-BELLING.pdf
Description
Low Consumption Linear Regulator
