2SB698 Datasheet - BLUE ROCKET ELECTRONICS

2SB698 Silicon PNP transistor

2SB698 Features

* 1W 。 1W AF output. / Applications ，。 Electronic governor, DC-DC converter applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range D 60~120 E 100~200 F 160~320 G 280~560 http://w

2SB698-BLUEROCKETELECTRONICS.pdf

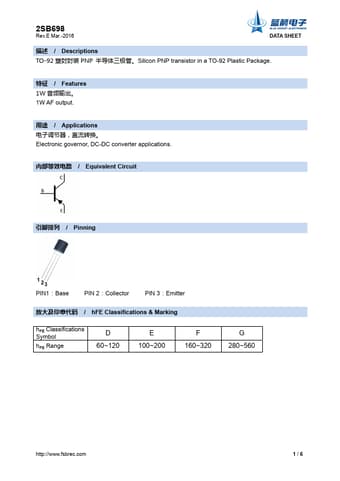

Preview of 2SB698 PDF
2SB698 Datasheet Preview Page 2 2SB698 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB698

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

966.05 KB

Description:

Silicon pnp transistor.
