2SB690 - PNP Transistor

2SB690 Description

isc Silicon PNP Power Transistor 2SB690 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO = -80V(Min). High Power Dissipation. Complement to Type 2SD726. Minimum Lot-to-Lot va.

2SB690 Applications

* Designed for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -4 A ICM Collector Cu

📥 Download Datasheet

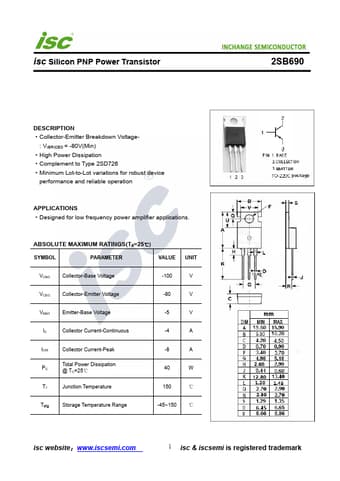

Preview of 2SB690 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB690
Manufacturer
INCHANGE
File Size
214.91 KB
Datasheet
2SB690-INCHANGE.pdf
Description
PNP Transistor
