2SB601, PNP Transistor

www.DataSheet4U.com DATA SHEET SILICON POWER TRANSISTOR 2SB601 PNP SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION) FOR LOW-FREQUENCY POWER AMP.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

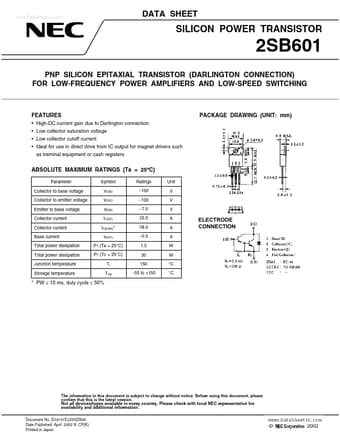

datasheet Preview Page 1 from Datasheet4u.com

2SB601_NEC.pdf

2SB601 Datasheet Preview — Preview of 2SB601 PDF

Datasheet Details

Part number:

2SB601

Manufacturer:

NEC

File Size:

143.66 KB

Description:

PNP Transistor

Features

* High-DC current gain due to Darlington connection
* Low collector saturation voltage
* Low collector cutoff current
* Ideal for use in direct drive from IC output for magnet drivers such as treminal equipment or cash registers PACKAGE DRAWING (UNIT: mm) ABSOLUTE M

Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v
