PE8205

N-Channel Enhancement Mode Power MOSFET

PE8205 Features

* VDS = 20V, ID = 6A RDS(ON) < 26mΩ @ VGS=4.5V RDS(ON) < 28mΩ @ VGS=3.8V RDS(ON) < 36mΩ @ VGS=2.5V Schematic diagram

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package Application

* Battery Protection k

* Load switch Marki

PE8205 Datasheet (747.41 KB)

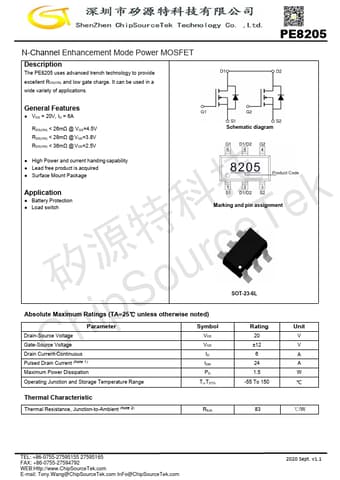

Preview of PE8205 PDF

Datasheet Details

Part number:

PE8205

Manufacturer:

ChipSourceTek

File Size:

747.41 KB

Description:

N-channel enhancement mode power mosfet.
