CY7C1041B - 256K x 16 Static RAM

Product Overview

Cypress Semiconductor

Part number	CY7C1041B
Manufacturer	Cypress Semiconductor
File Size	360.35 KB
Description	256K x 16 Static RAM
Datasheet	CY7C1041B Datasheet
Note	This datasheet PDF includes multiple part numbers: CY7C1041B, CY7. Please refer to the document for exact specifications by model.

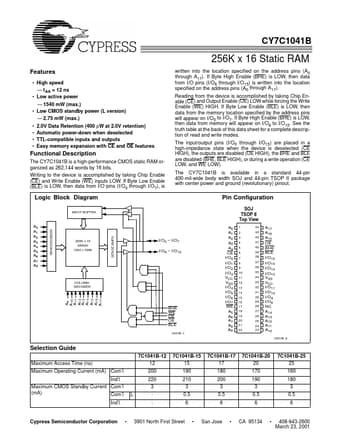

Additional preview pages of the CY7C1041B datasheet.

of read and write modes.

High speed.
tAA = 12 ns.
Low active power.
1540 mW (max. ).
Low CMOS standby power (L version).
2.75 mW (max. ).
2.0V Data Retention (400 µW at 2.0V retention).
Automatic power-down when deselected.
TTL-compatible inputs and outputs.
Easy memory expansion with CE and OE features written into the location specified on the address pins (A0 through A17). If Byte High Enable (BHE) is LOW, then data from I/O pins.
