CY7C1041D Datasheet - Cypress Semiconductor

CY7C1041D - 4-Mbit (256K x 16) Static RAM

1] The CY7C1041D is a high-performance CMOS static RAM organized as 256K words by 16 bits.

Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW.

If Byte Low Enable (BLE) is LOW, then data from I/O pins (I/O0 through I/O7), is written into the location spe

CY7C1041D Features

* Pin-and function-compatible with CY7C1041B

* High speed

* tAA = 10 ns

* Low active power

* ICC = 90 mA at 10 ns (Industrial)

* Low CMOS standby power

* ISB2 = 10 mA

* 2.0 V data retention

* Automatic power-down when deselected

* TTL-compatible inputs and out

CY7C1041D-CypressSemiconductor.pdf

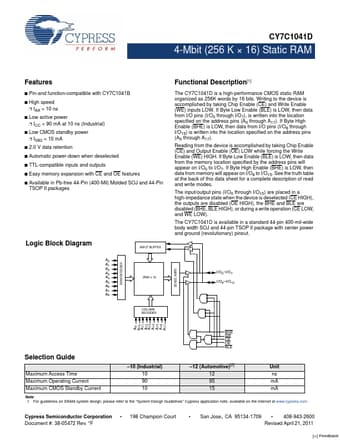

Preview of CY7C1041D PDF
CY7C1041D Datasheet Preview Page 2 CY7C1041D Datasheet Preview Page 3

Datasheet Details

Part number:

CY7C1041D

Manufacturer:

Cypress Semiconductor

File Size:

297.39 KB

Description:

4-mbit (256k x 16) static ram.
