CY7C1049BN

The CY7C1049BN is 512K x 8 Static RAM designed by Cypress Semiconductor.

Product Overview

Cypress Semiconductor

Part number	CY7C1049BN
Manufacturer	Cypress Semiconductor
File Size	370.58 KB
Description	512K x 8 Static RAM
Datasheet	CY7C1049BN_CypressSemiconductor.pdf

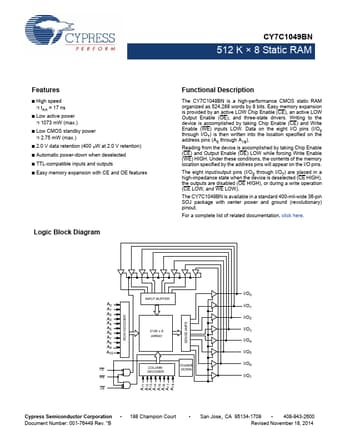

Additional preview pages of the CY7C1049BN datasheet.

The CY7C1049BN is a high-performance CMOS static RAM organized as 524,288 words by 8 bits.

High speed.
tAA = 17 ns.
Low active power.
1073 mW (max. ).
Low CMOS standby power.
2.75 mW (max. ).
2.0 V data retention (400 W at 2.0 V retention).
Automatic power-down when deselected.
TTL-compatible inputs and outputs.
Easy memory expansion with CE and OE features Logic Block Diagram CY7C1049BN 512 K × 8 Static RAM Functional.
