CY7C1049BV33

The CY7C1049BV33 is 512K x 8 Static RAM designed by Cypress Semiconductor.

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CY7C1049BV33
Manufacturer	Cypress Semiconductor
File Size	204.35 KB
Description	512K x 8 Static RAM
Datasheet	CY7C1049BV33_CypressSemiconductor.pdf

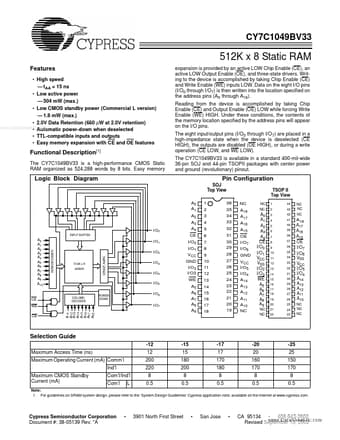

Additional preview pages of the CY7C1049BV33 datasheet.

Product details

Description

1] The CY7C1049BV33 is a high-performance CMOS Static RAM organized as 524,288 words by 8 bits.Easy memory Logic Block Diagram Pin Configuration SOJ Top View TSOP II Top View NC A18 A17 A16 A15 OE I/O7 I/O6 GND VCC I/O5 I/O4 A14 A13 A12 A11 A10 NC NC NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 I/O0 INPUT BUFFER A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 I/O1 ROW DECODER I/O2 SENSE AMPS 512K x 8 ARRAY I/O3 I/O4 I/O

Features

High speed.
tAA = 15 ns.
Low active power.
504 mW (max. ).
Low CMOS standby power (Commercial L version).
1.8 mW (max. ).
2.0V Data Retention (660 µW at 2.0V retention) www. DataSheet4U. com.
Automatic power-down when deselected.
TTL-compatible inputs and outputs.
Easy memory expansion with CE and OE features expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-s.
