CY7C1049BNV33

The CY7C1049BNV33 is 512K x 8 Static RAM designed by Cypress Semiconductor.

Product Overview

📥 Download Datasheet

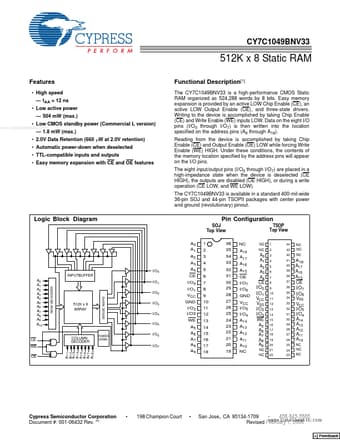

Datasheet preview – CY7C1049BNV33

Datasheet Details

Part number CY7C1049BNV33
Manufacturer Cypress Semiconductor
File Size 454.40 KB
Description 512K x 8 Static RAM
Datasheet download datasheet CY7C1049BNV33_CypressSemiconductor.pdf
Additional preview pages of the CY7C1049BNV33 datasheet.

Product details

Description

1] The CY7C1049BNV33 is a high-performance CMOS Static RAM organized as 524,288 words by 8 bits.Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers.Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW.Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A18).Reading from the device is accomplished by taki

Features
