CY7C146

2K x 8 Dual-Port Static RAM

CY7C146 Features

* True dual-ported memory cells that enable simultaneous reads of the same memory location

* 2K x 8 organization

* 0.65 micron CMOS for optimum speed and power

* High speed access: 15 ns

* Low operating power: ICC = 110 mA (maximum)

* Fully asynchronous operation

* Automa

CY7C146 General Description

The CY7C132, CY7C136, CY7C136A, CY7C142, and CY7C146 are high speed CMOS 2K x 8 dual-port static RAMs. Two ports are provided to permit independent access to any location in memory. The CY7C132, CY7C136, and C.

CY7C146 Datasheet (340.24 KB)

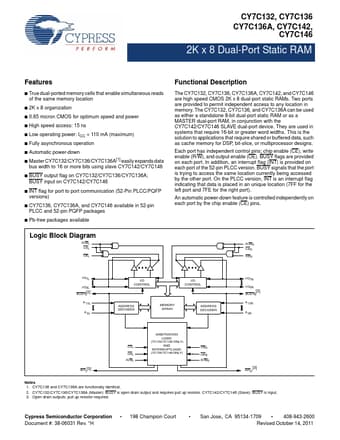

Preview of CY7C146 PDF

Datasheet Details

Part number:

CY7C146

Manufacturer:

Cypress Semiconductor

File Size:

340.24 KB

Description:

2k x 8 dual-port static ram.
