CY7C1462KVE33, CY7C1460KV33 - 36-Mbit (1M x 36/2M x 18) Pipelined SRAM

Name: CY7C1462KVE33
SKU: CY7C1462KVE33-1101297

Cypress Semiconductor

The CY7C1462KVE33 by Cypress Semiconductor is a 36-Mbit (1M x 36/2M x 18) Pipelined SRAM. Below is the official datasheet preview.

Datasheet Details

Part number	CY7C1462KVE33, CY7C1460KV33
Manufacturer	Cypress Semiconductor
File Size	1.32 MB
Description	36-Mbit (1M x 36/2M x 18) Pipelined SRAM
Datasheet	CY7C1460KV33-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1462KVE33, CY7C1460KV33. Please refer to the document for exact specifications by model.

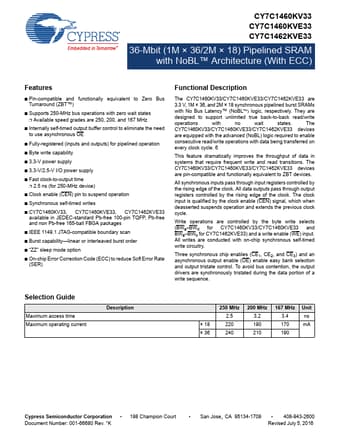

Additional preview pages of the CY7C1462KVE33 datasheet.

Pin-compatible and functionally equivalent to Zero Bus Turnaround (ZBT™).
Supports 250-MHz bus operations with zero wait states.
Available speed grades are 250, 200, and 167 MHz.
Internally self-timed output buffer control to eliminate the need to use asynchronous OE.
Fully-registered (inputs and outputs) for pipelined operation.
Byte write capability.
3.3-V power supply.
3.3-V/2.5-V I/O power supply.
Fast clock-to-output time.
2.5 ns (for 250-M.
