CY7C1480BV25 - 72-Mbit (2M x 36/4M x 18/1M x 72) Pipelined Sync SRAM

Cypress Semiconductor

The CY7C1480BV25 by Cypress Semiconductor is a 72-Mbit (2M x 36/4M x 18/1M x 72) Pipelined Sync SRAM. Below is the official datasheet preview.

📥 Download Datasheet

CY7C1480BV25 72-Mbit (2M x 36/4M x 18/1M x 72) Pipelined Sync SRAM by Cypress Semiconductor - Datasheet Preview — Official preview page of the **CY7C1480BV25** 72-Mbit (2M x 36/4M x 18/1M x 72) Pipelined Sync SRAM datasheet (Cypress Semiconductor).

Datasheet Details

Part number	CY7C1480BV25
Manufacturer	Cypress Semiconductor
File Size	2.88 MB
Description	72-Mbit (2M x 36/4M x 18/1M x 72) Pipelined Sync SRAM
Datasheet	CY7C1480BV25_CypressSemiconductor.pdf

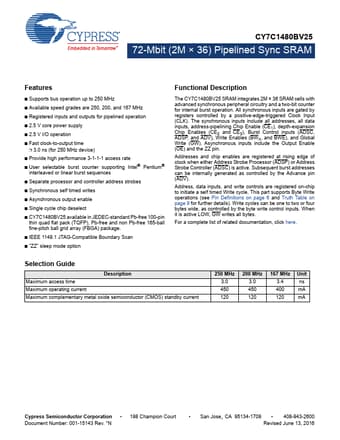

Additional preview pages of the CY7C1480BV25 datasheet.

CY7C1480BV25 Product details

Description

The CY7C1480BV25 SRAM integrates 2M × 36 SRAM cells with advanced

Features

Supports bus operation up to 250 MHz.
Available speed grades are 250, 200, and 167 MHz.
Registered inputs and outputs for pipelined operation.
2.5 V core power supply.
2.5 V I/O operation.
Fast clock-to-output time.
3.0 ns (for 250 MHz device).
Provide high performance 3-1-1-1 access rate.
User selectable burst counter supporting Intel® Pentium® interleaved or linear burst sequences.
Separate processor and controller address strobes.
Synchr.
