1SS108 - SCHOTTKY BARRIER DIODES

Datasheet Summary

Features

  • :.
  • High reliability with glass seal.
  • Small temperature coefficient.
  • Pb / RoHS Free.

📥 Download Datasheet

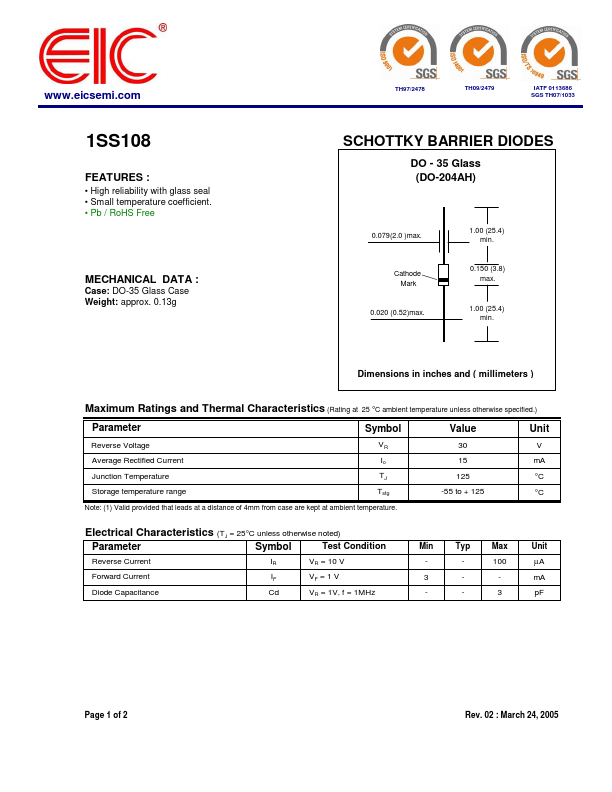

Datasheet preview – 1SS108

Datasheet Details

Part number 1SS108
Manufacturer EIC
File Size 39.52 KB
Description SCHOTTKY BARRIER DIODES
Datasheet download datasheet 1SS108 Datasheet

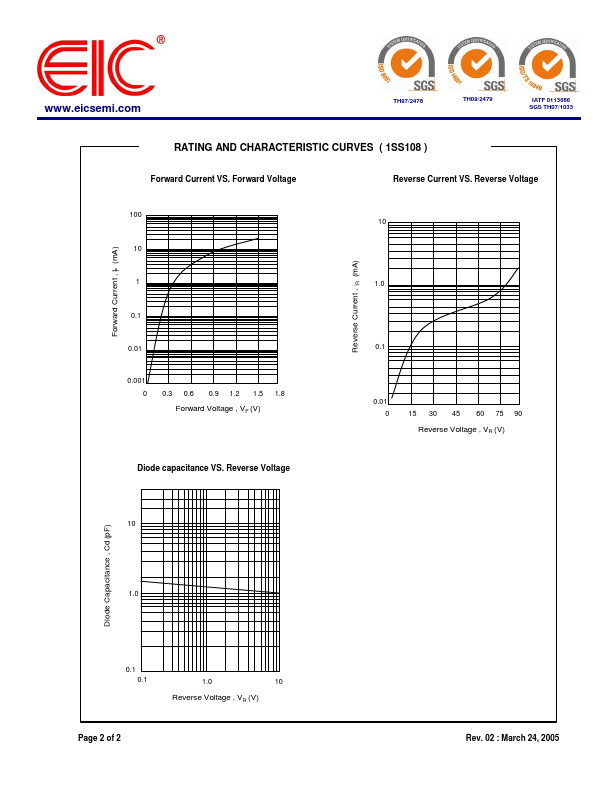

Additional preview pages of the 1SS108 datasheet.

📁 Similar Datasheet

  • 1SS108 - Silicon Schottky Barrier Diode (Hitachi Semiconductor)
  • 1SS108 - SILICON SCHOTTKY BARRIER DIODE (Sunmate)
  • 1SS101 - SUPER HIGH SPEED SWITCHING DIODE (XIN SEMICONDUCTOR)
  • 1SS101 - Mixer Diode (NEC)
  • 1SS104 - SILICON DIODE (Toshiba Semiconductor)
  • 1SS106 - SILICON SCHOTTKY BARRIER DIODE (SEMTECH)
  • 1SS106 - Silicon Schottky Barrier Diode (Renesas)
  • 1SS106 - SMALL SIGNAL SCHOTTKY DIODES (JINAN JINGHENG ELECTRONICS)
  • 1SS106 - SCHOTTKY BARRIER RECTIFIER DIODES (Sunmate)
  • 1SS106 - Silicon Schottky Barrier Diode (Hitachi)
Other Datasheets by EIC
  • 1SS106 - SCHOTTKY BARRIER DIODES
  • 1SS120 - HIGH SPEED SWITCHING DIODE
  • 1SS130 - HIGH SPEED SWITCHING DIODE
  • 1SS131 - HIGH SPEED SWITCHING DIODE
  • 1SS132 - HIGH SPEED SWITCHING DIODE
  • 1SS133 - HIGH SPEED SWITCHING DIODE
  • 1SS165 - SCHOTTKY BARRIER DIODE
  • 1SS166 - SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text
www.eicsemi.com 1SS108 FEATURES : • High reliability with glass seal • Small temperature coefficient. • Pb / RoHS Free MECHANICAL DATA : Case: DO-35 Glass Case Weight: approx. 0.13g TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 SCHOTTKY BARRIER DIODES DO - 35 Glass (DO-204AH) 0.079(2.0 )max. Cathode Mark 0.020 (0.52)max. 1.00 (25.4) min. 0.150 (3.8) max. 1.00 (25.4) min. Dimensions in inches and ( millimeters ) Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.) Parameter Symbol Reverse Voltage VR Average Rectified Current Io Junction Temperature TJ Storage temperature range Tstg Note: (1) Valid provided that leads at a distance of 4mm from case are kept at ambient temperature.
