1SS270A - HIGH SPEED SWITCHING DIODE

Datasheet Summary

Features

:.
High switching speed: max. 3.5 ns.
Continuous reverse voltage:max. 60 V.
Peak reverse voltage:max. 70 V.
Pb / RoHS Free.

EIC

📥 Download Datasheet

1SS270A HIGH SPEED SWITCHING DIODE by EIC - Datasheet Preview — Datasheet preview – 1SS270A

Datasheet Details

Part number	1SS270A
Manufacturer	EIC
File Size	70.85 KB
Description	HIGH SPEED SWITCHING DIODE
Datasheet	1SS270A Datasheet
Additional preview pages of the 1SS270A datasheet.

📁 Similar Datasheet

1SS270A - SILICON EPITAXIAL PLANAR DIODE (Sunmate)
1SS270A - Silicon Epitaxial Planar Switching Diode (JGD)
1SS270A - Silicon Epitaxial Planar Diode (Hitachi)
1SS270A - SILICON EPITAXIAL PLANAR H IGH SPEED SWITCHING DIODE (SEMTECH)
1SS270A - Silicon Epitaxial Planar Diode (Renesas)
1SS270 - Silicon Diode (Hitachi Semiconductor)
1SS270 - SWITCHING DIODES (Leshan Radio Company)
1SS270 - Silicon Epitaxial Planar Diode (Renesas)
1SS271 - Diode (Toshiba Semiconductor)
1SS272 - Silicon Epitaxial Planar Type Diode (Toshiba Semiconductor)

Other Datasheets by EIC

1SS226 - SILICON EPITAXIAL PLANAR DIODE
1SS106 - SCHOTTKY BARRIER DIODES
1SS108 - SCHOTTKY BARRIER DIODES
1SS120 - HIGH SPEED SWITCHING DIODE
1SS130 - HIGH SPEED SWITCHING DIODE
1SS131 - HIGH SPEED SWITCHING DIODE
1SS132 - HIGH SPEED SWITCHING DIODE
1SS133 - HIGH SPEED SWITCHING DIODE

Full PDF Text Transcription

Click to expand full text

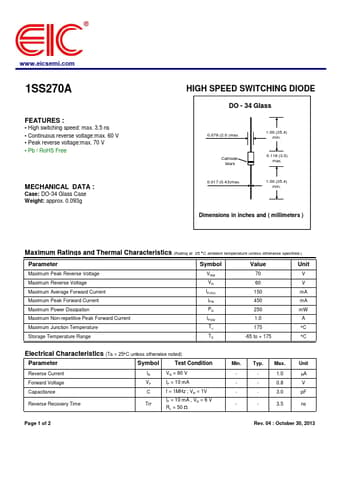

1SS270A FEATURES : • High switching speed: max. 3.5 ns • Continuous reverse voltage:max. 60 V • Peak reverse voltage:max. 70 V • Pb / RoHS Free MECHANICAL DATA : Case: DO-34 Glass Case Weight: approx. 0.093g TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 HIGH SPEED SWITCHING DIODE DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.017 (0.43)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00 (25.4) min. Dimensions in inches and ( millimeters ) Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.
