M13S64164A-4BG2Y, M13S64164A - 1M x 16 Bit x 4 Banks Double Data Rate SDRAM

ESMT

Datasheet Details

Part number	M13S64164A-4BG2Y, M13S64164A
Manufacturer	ESMT
File Size	1.19 MB
Description	1M x 16 Bit x 4 Banks Double Data Rate SDRAM
Datasheet	M13S64164A_EliteSemiconductorMemoryTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: M13S64164A-4BG2Y, M13S64164A. Please refer to the document for exact specifications by model.

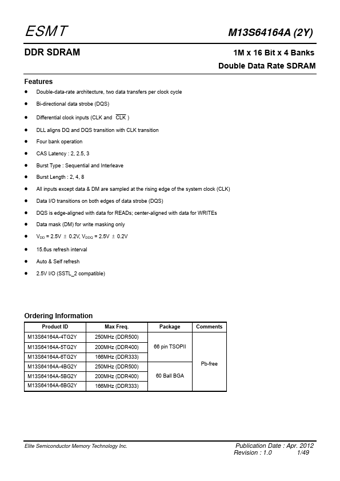

z Double-data-rate architecture, two data transfers per clock cycle z Bi-directional data strobe (DQS) z Differential clock inputs (CLK and CLK ) z DLL aligns DQ and DQS transition with CLK transition z Four bank operation z CAS Latency : 2, 2.5, 3 z Burst Type : Sequential and Interleave z Burst Length : 2, 4, 8 z All inputs except data & DM are sampled at the rising edge of the system clock (CLK) z Data I/O transitions on both edges of data strobe (DQS) z DQS is edge-aligned with data for REA.
