M13S64164A-5BG2Y

1M x 16 Bit x 4 Banks Double Data Rate SDRAM

M13S64164A-5BG2Y Datasheet (1.19 MB)

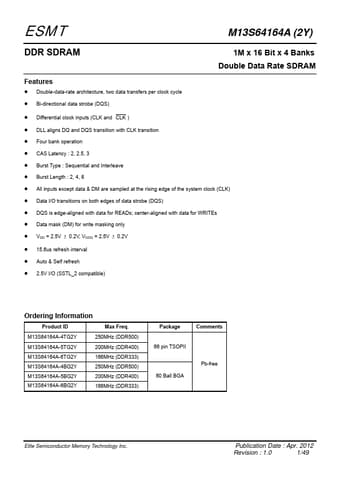

Preview of M13S64164A-5BG2Y PDF

Datasheet Details

Part number:

M13S64164A-5BG2Y

Manufacturer:

ESMT

File Size:

1.19 MB

Description:

1m x 16 bit x 4 banks double data rate sdram.

M13S64164A-5BG2Y Features

* z Double-data-rate architecture, two data transfers per clock cycle z Bi-directional data strobe (DQS) z Differential clock inputs (CLK and CLK ) z DLL aligns DQ and DQS transition with CLK transition z Four bank operation z CAS Latency : 2, 2.5, 3 z Burst Type : Sequential and Interleave z Burst L
