ES7144 - 192 kHz Stereo D/A Converter

ES7144 Description

ES7144 10-pin, 24-Bit, 192 kHz Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7144 is a low cost 10-pin stereo digital to analog converter.

ES7144 Features

* The ES7144 is a low cost 10-pin stereo digital to analog converter. The ES7144 can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆-∑ modulator makes the device

ES7144 Applications

* Digital Photo Frame
* Portable audio player
* Set top box
* Digital TV ORDERING INFORMATION ES7144 -40°C ~ +85°C TSSOP-10 BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Multi-level Sigma-delta D

📥 Download Datasheet

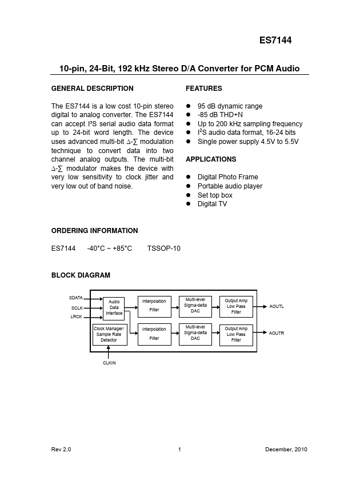

Preview of ES7144 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES7144
Manufacturer
ETC
File Size
191.83 KB
Datasheet
ES7144-ETC.pdf
Description
192 kHz Stereo D/A Converter
