ES7145LV - 192 kHz Stereo D/A Converter

ES7145LV Description

ES7145LV 10-pin, 24-Bit, 192 kHz Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7145LV is a low cost 10-pin stereo digital to analog converter.

ES7145LV Features

* The ES7145LV is a low cost 10-pin stereo digital to analog converter. The ES7145LV can accept left justified serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆ -∑ modulator m

ES7145LV Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7145LV -40°C ~ +85°C MSOP 10 (TSSOP-10) BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Multi

📥 Download Datasheet

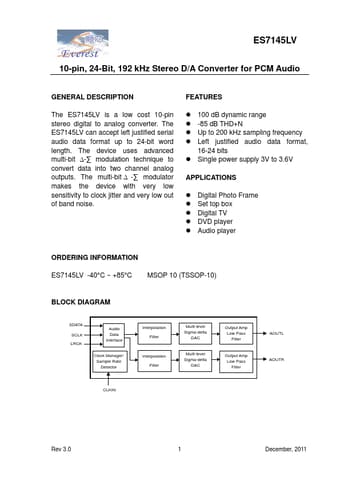

Preview of ES7145LV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES7145LV
Manufacturer
Everest Semiconductor
File Size
288.64 KB
Datasheet
ES7145LV-EverestSemiconductor.pdf
Description
192 kHz Stereo D/A Converter
