ES7134LV 24-Bit 192kHz Stereo D/A Converter

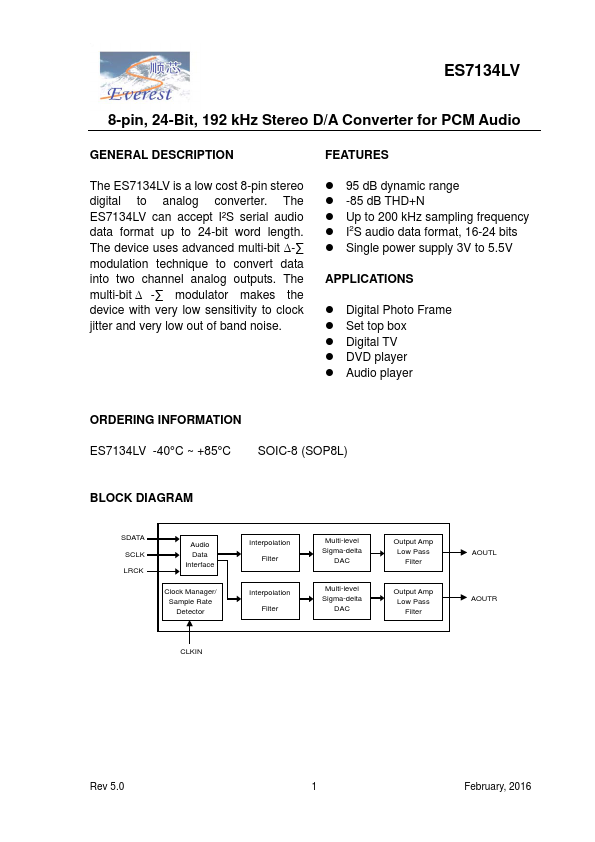

📥 Download Datasheet  Datasheet Preview Page 1

Description

ES7134LV 8-pin, 24-Bit, 192 kHz Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7134LV is a low cost 8-pin stereo digital to analog converter.

📥 Download Datasheet

Preview of ES7134LV PDF

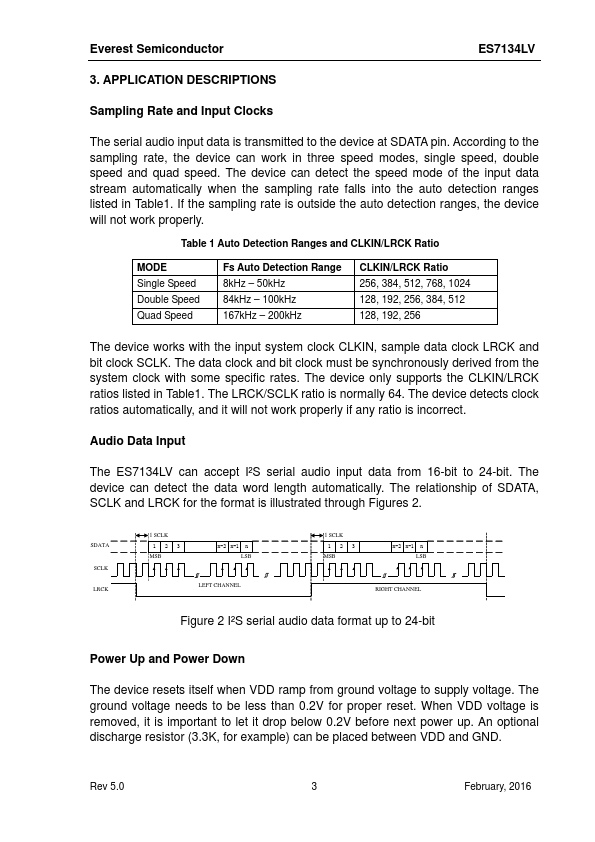

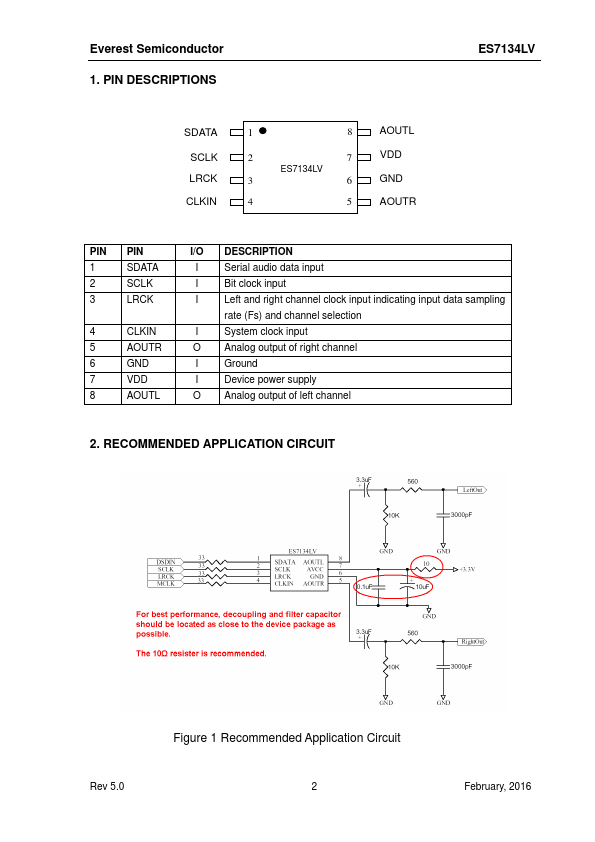

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ES7134LV
Manufacturer
Everest Semiconductor
File Size
331.93 KB
Datasheet
ES7134LV-EverestSemiconductor.pdf
Description
24-Bit 192kHz Stereo D/A Converter

Features

* The ES7134LV is a low cost 8-pin stereo digital to analog converter. The ES7134LV can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆ -∑ modulator makes the dev

Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7134LV -40°C ~ +85°C SOIC-8 (SOP8L) BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Multi-lev
