ES7149 - 24-Bit Stereo D/A Converter

ES7149 Description

ES7149 12-pin, 24-Bit Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7149 is a low cost 12-pin stereo digital to analog converter.

ES7149 Features

* The ES7149 is a low cost 12-pin stereo digital to analog converter. The ES7149 can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆-∑ modulator makes the device

ES7149 Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7149 -40°C ~ +85°C QFN-12 BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Multi-level Sigma-d

📥 Download Datasheet

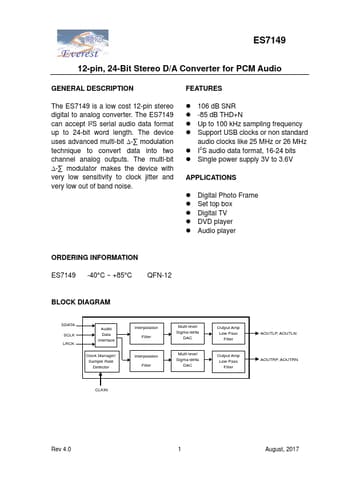

Preview of ES7149 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES7149
Manufacturer
Everest Semiconductor
File Size
317.16 KB
Datasheet
ES7149-EverestSemiconductor.pdf
Description
24-Bit Stereo D/A Converter
