ES7148, 24-Bit Stereo D/A Converter

ES7148 12-pin, 24-Bit Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7148 is a low cost 12-pin stereo digital to analog converter.

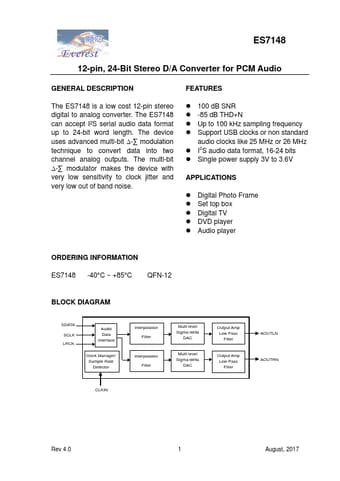

datasheet Preview Page 1 from Datasheet4u.com

ES7148-EverestSemiconductor.pdf

ES7148 Datasheet Preview — Preview of ES7148 PDF

Datasheet Details

Part number:

ES7148

Manufacturer:

Everest Semiconductor

File Size:

316.00 KB

Description:

24-Bit Stereo D/A Converter

Features

* The ES7148 is a low cost 12-pin stereo digital to analog converter. The ES7148 can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆-∑ modulator makes the device

Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7148 -40°C ~ +85°C QFN-12 BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Multi-level Sigma-d
