ES7144LV - 192 kHz Stereo D/A Converter

ES7144LV Description

ES7144LV 10-pin, 24-Bit, 192 kHz Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7144LV is a low cost 10-pin stereo digital to analog converter.

ES7144LV Features

* The ES7144LV is a low cost 10-pin stereo digital to analog converter. The ES7144LV can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆-∑ modulator makes the dev

ES7144LV Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7144LV -40°C ~ +85°C TSSOP-10 BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Multi-level Sig

📥 Download Datasheet

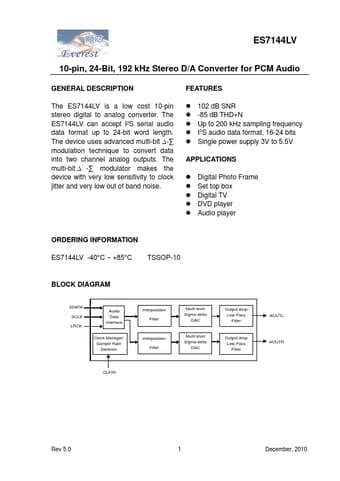

Preview of ES7144LV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES7144LV
Manufacturer
ETC
File Size
210.88 KB
Datasheet
ES7144LV-ETC.pdf
Description
192 kHz Stereo D/A Converter
