ES7144S, 24-Bit Stereo D/A Converter

ES7144S 10-pin, 24-Bit Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7144S is a low cost 10-pin stereo digital to analog converter.

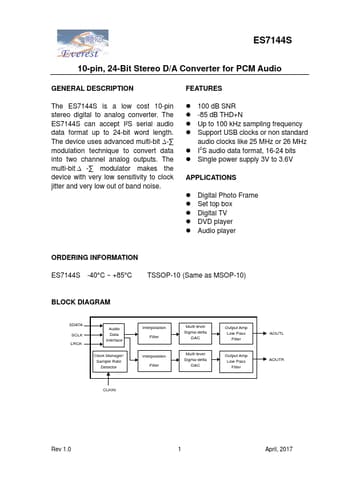

datasheet Preview Page 1 from Datasheet4u.com

ES7144S-EverestSemiconductor.pdf

ES7144S Datasheet Preview — Preview of ES7144S PDF

Datasheet Details

Part number:

ES7144S

Manufacturer:

Everest Semiconductor

File Size:

287.10 KB

Description:

24-Bit Stereo D/A Converter

Features

* The ES7144S is a low cost 10-pin stereo digital to analog converter. The ES7144S can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆ -∑ modulator makes the devi

Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7144S -40°C ~ +85°C TSSOP-10 (Same as MSOP-10) BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter
