ES7134S - 24-Bit Stereo D/A Converter

ES7134S Description

ES7134S 8-pin, 24-Bit Stereo D/A Converter for PCM Audio GENERAL .
FEATURES The ES7134S is a low cost 8-pin stereo digital to analog converter.

ES7134S Features

* The ES7134S is a low cost 8-pin stereo digital to analog converter. The ES7134S can accept I²S serial audio data format up to 24-bit word length. The device uses advanced multi-bit ∆-∑ modulation technique to convert data into two channel analog outputs. The multi-bit ∆ -∑ modulator makes the devic

ES7134S Applications

* Digital Photo Frame
* Set top box
* Digital TV
* DVD player
* Audio player ORDERING INFORMATION ES7134S -40°C ~ +85°C SOIC-8 (SOP8L) BLOCK DIAGRAM SDATA SCLK LRCK Audio Data Interface Clock Manager/ Sample Rate Detector Interpolation Filter Interpolation Filter Mult

📥 Download Datasheet

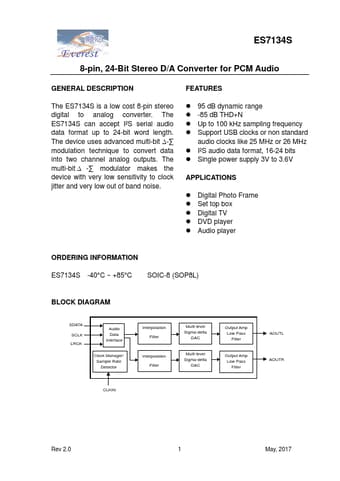

Preview of ES7134S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES7134S
Manufacturer
Everest Semiconductor
File Size
311.47 KB
Datasheet
ES7134S-EverestSemiconductor.pdf
Description
24-Bit Stereo D/A Converter
