EDJ2116DEBG, EDJ2108DEBG Datasheet - Elpida Memory

EDJ2116DEBG 2G bits DDR3 SDRAM

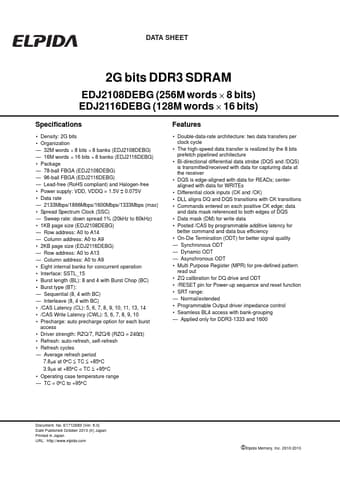

COVER DATA SHEET 2G bits DDR3 SDRAM EDJ2108DEBG (256M words × 8 bits) EDJ2116DEBG (128M words × 16 bits) Specifications Density: 2G bits Organization 32M words × 8 bits × 8 banks (EDJ2108DEBG) 16M words × 16 bits × 8 banks (EDJ2116DEBG) Package 78-ball FBGA (EDJ2108DEBG) 96-ball FBGA (EDJ2116DEBG) Lead-free (RoHS compliant) and Halogen-free Power supply: VDD, VDDQ = 1.5V ± 0.075V Data rate <.

EDJ2116DEBG Features

* Double-data-rate architecture: two data transfers per clock cycle

* The high-speed data transfer is realized by the 8 bits prefetch pipelined architecture

* Bi-directional differential data strobe (DQS and /DQS) is transmitted/received with data for capturing data at the re

EDJ2108DEBG-ElpidaMemory.pdf

This datasheet PDF includes multiple part numbers: EDJ2116DEBG, EDJ2108DEBG. Please refer to the document for exact specifications by model.
EDJ2116DEBG Datasheet Preview Page 2 EDJ2116DEBG Datasheet Preview Page 3

Datasheet Details

Part number:

EDJ2116DEBG, EDJ2108DEBG

Manufacturer:

Elpida Memory

File Size:

297.00 KB

Description:

2g bits ddr3 sdram.

Note:

This datasheet PDF includes multiple part numbers: EDJ2116DEBG, EDJ2108DEBG.
Please refer to the document for exact specifications by model.
