EM5209

Ultra-Low Resistance Load Switch

Excelliance MOS

EM5209 Features

* Typical Application Circuit

* Integrated dual channel load switch

* Input voltage range : 0.8V to 5.5V

* Ultra low RON resistance 20mΩ per channel

* 6A maximum continuous switch current per channel

* Low quiescent current 75uA (dual channel)

* Adjustable output rising time

EM5209 General Description

The EM5209 is a small, ultra-low RON, dual channel load switch with controlled turn on. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8V to 5.5V and can support a maximum continuous current of 6A per channel. Each switch is independently controlled by an.

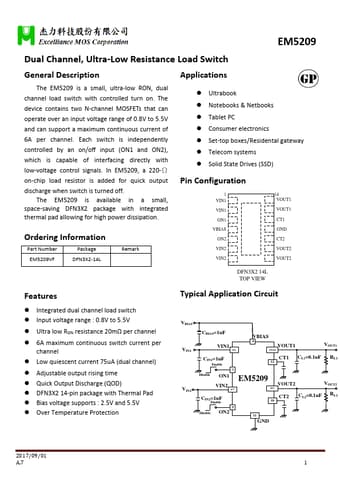

EM5209 Datasheet (1.15 MB)

EM5209 Datasheet Preview — Preview of EM5209 PDF

Datasheet Details

Part number:

EM5209

Manufacturer:

Excelliance MOS

File Size:

1.15 MB

Description:

Ultra-low resistance load switch.
