74LS73A

Dual Negative-Edge-Triggered Master-Slave J-K Flip-Flops

74LS73A General Description

This device contains two independent negative-edge-triggered J-K flip-flops with complementary outputs. The J and K data is processed by the flip-flops on the falling edge of the clock pulse. The clock triggering occurs at a voltage level and is not directly related to the transition time of the neg.

74LS73A Datasheet (53.28 KB)

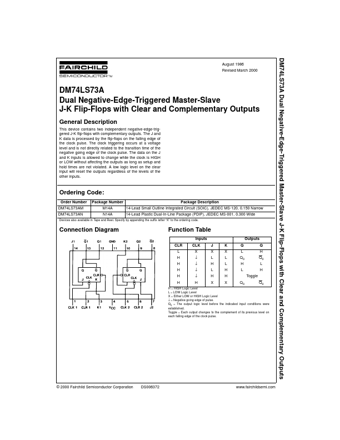

Preview of 74LS73A PDF

Datasheet Details

Part number:

74LS73A

Manufacturer:

Fairchild Semiconductor

File Size:

53.28 KB

Description:

Dual negative-edge-triggered master-slave j-k flip-flops.
DM74LS73A Dual Negative-Edge-Triggered Master-Slave J-K Flip-Flops with Clear and Complementary Outputs August 1986 Revised March 2000 DM74LS73A Dua.
