FDMS2502SDC Datasheet - Fairchild Semiconductor

N-Channel MOSFET

FDMS2502SDC General Description

* Dual CoolTM Top Side Cooling PQFN package * Max rDS(on) = 1.2 mΩ at VGS = 10 V, ID = 35 A * Max rDS(on) = 1.7 mΩ at VGS = 4.5 V, ID = 31 A * High performance technology for extremely low rDS(on) * SyncFET Schottky Body Diode * RoHS Compliant This N.

FDMS2502SDC Datasheet (261.98 KB)

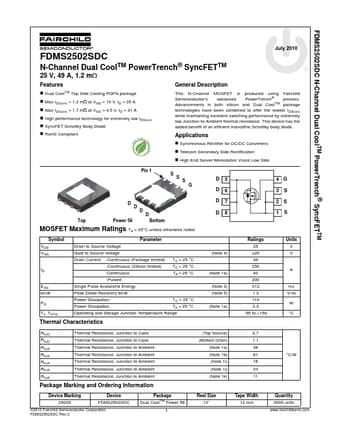

FDMS2502SDC Datasheet Preview — Preview of FDMS2502SDC PDF

Datasheet Details

Part number:

FDMS2502SDC

Manufacturer:

Fairchild Semiconductor

File Size:

261.98 KB

Description:

N-channel mosfet.
FDMS2502SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM FDMS2502SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM 25 V, 49 A, 1.2 mΩ July 2010 Feat.
