FDMS2506SDC Datasheet - Fairchild Semiconductor

N-Channel MOSFET

FDMS2506SDC General Description

* Dual CoolTM Top Side Cooling PQFN package * Max rDS(on) = 1.45 mΩ at VGS = 10 V, ID = 30 A * Max rDS(on) = 2.1 mΩ at VGS = 4.5 V, ID = 26 A * High performance technology for extremely low rDS(on) * SyncFET Schottky Body Diode * RoHS Compliant This .

FDMS2506SDC Datasheet (778.77 KB)

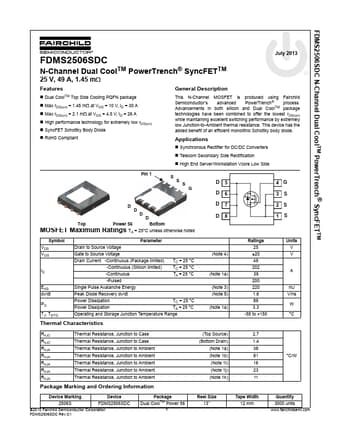

FDMS2506SDC Datasheet Preview — Preview of FDMS2506SDC PDF

Datasheet Details

Part number:

FDMS2506SDC

Manufacturer:

Fairchild Semiconductor

File Size:

778.77 KB

Description:

N-channel mosfet.
FDMS2506SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM FDMS2506SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM 25 V, 49 A, 1.45 mΩ July 2013 Fea.
