HGT1S14N40F3VLS - N-Channel IGBT

Datasheet Summary

Description

This N-Channel IGBT is a MOS gated, logic level device which is intended to be used as an ignition coil driver in automotive ignition circuits.

Features

  • include an active voltage clamp between the drain and the gate and ESD protection for the logic level gate. Some specifications are unique to this automotive.

📥 Download Datasheet

Datasheet preview – HGT1S14N40F3VLS

Datasheet Details

Part number HGT1S14N40F3VLS
Manufacturer Fairchild Semiconductor
File Size 147.41 KB
Description N-Channel IGBT
Datasheet download datasheet HGT1S14N40F3VLS Datasheet
Additional preview pages of the HGT1S14N40F3VLS datasheet.

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

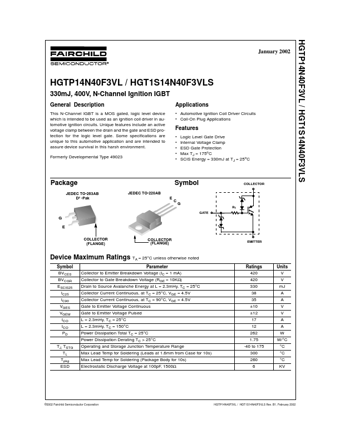

HGTP14N40F3VL / HGT1S14N40F3VLS January 2002 HGTP14N40F3VL / HGT1S14N40F3VLS 330mJ, 400V, N-Channel Ignition IGBT General Description This N-Channel IGBT is a MOS gated, logic level device which is intended to be used as an ignition coil driver in automotive ignition circuits. Unique features include an active voltage clamp between the drain and the gate and ESD protection for the logic level gate. Some specifications are unique to this automotive application and are intended to assure device survival in this harsh environment.
Published: |
