HGT1S3N60C3D - 6A 600V UFS Series N-Channel IGBT

Description

The HGTP3N60C3D, HGT1S3N60C3D, and HGT1S3N60C3DS are MOS gated high voltage switching devices combining the best

Features

  • 6A, 600V at TC = 25oC.
  • 600V Switching SOA Capability.
  • Typical Fall Time.
  • . . . . 130ns at TJ = 150oC.
  • Short Circuit Rating.
  • Low Conduction Loss.
  • Hyperfast Anti-Parallel Diode.

📥 Download Datasheet

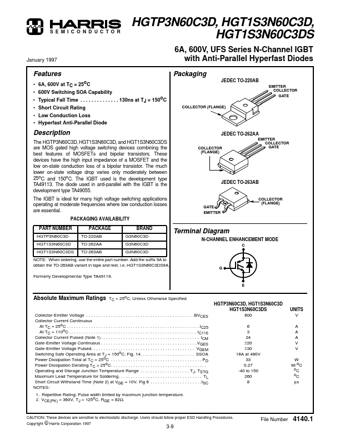

Datasheet preview – HGT1S3N60C3D
