IRFU330B, IRFR330B Datasheet - Fairchild Semiconductor

IRFU330B 400V N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a.

IRFU330B Features

* 4.5A, 400V, RDS(on) = 1.0Ω @VGS = 10 V Low gate charge ( typical 25 nC) Low Crss ( typical 20 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D !

* ◀ ▲

* G! G S D-PAK IRFR Series I-PAK G D S IRFU Ser

IRFR330B_FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: IRFU330B, IRFR330B. Please refer to the document for exact specifications by model.

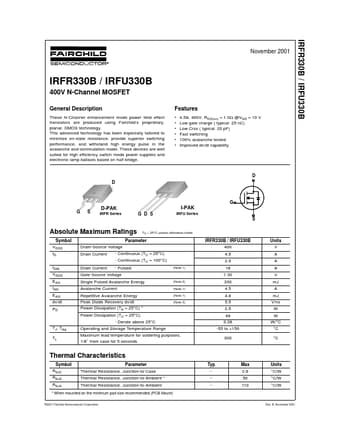

IRFU330B Datasheet Preview Page 2 IRFU330B Datasheet Preview Page 3

Datasheet Details

Part number:

IRFU330B, IRFR330B

Manufacturer:

Fairchild Semiconductor

File Size:

671.72 KB

Description:

400v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFU330B, IRFR330B.
Please refer to the document for exact specifications by model.
